This chemically resistant trigger sprayer works well for most tough chemicals that would typically harm a standard trigger sprayer. The nozzle is adjustable to create a fine spray or jet stream for dispensing liquids. In addition to harsh chemicals, this trigger sprayer is good for general use, household cleaners, auto detail, carpet spot cleaning and more.
Material: Polypropylene
Plastic Polypropylene (PP) is a tough plastic that has a good chemical resistant. PP is translucent in its natural state but can have a glossy finish when produced with color. It is not recommended for cold or sub-freezing temperatures.
316 stainless steel
This product offers high tensile strength and has a corrosion resistance that can withstand harsh environments. It is also non-magnetic and must be hardened through cold working. The difference between type 304 and 316 stainless steel is the incorporation of molybdenum of up to 3%. This grade of stainless steel is commonly used in the surgical industry, paper pulp industry and in the production of dyes and chemicals.
NBR (Nitrile Rubber) Property Comparison
Oil and Fuel Resistance: A
Animal and Vegetable Oil Resistance: A+
Alcohol Resistance: A
Alkaline Resistance: A
Acid Resistance: A
Aliphatic-solvent Resistance : Aliphatic: A+
Aliphatic-solvent Resistance : Aromatic: B
Oxygen Ated-solvent Resistance: D
Water Resistance: A
Disadvantages:
Not suitable for use in polar solvents such as ketones, ozone, nitro hydrocarbons, MEK and chloroform.
Optional:
Regarding the issue for the acetone and aggressive chemicals. We suggest may use the EPDM rubber will be good resistance for those chemicals. But kindly note this kind of rubber cannot suitable for the Mineral oil resistance and Gasoline resistance.
At present, our sprayers are available in three piston rubber parts for different chemical products. The three rubbers are NBR, EPDM, and Viton that for customers reference. NBR is the most popular rubber material in our triggers, and the price is acceptable but some the solvent will be damage the NBR. Next, the EPDM has expensive than NBR a little but can be resistance for the ketone. The Viton will be very expensive than others rubber, especially strong resistance for Acid, Alkali, oil, and Gasoline chemicals.
If you need to purchase EPDM or Viton’s trigger sprayer, please write to us and we will serve you as soon as possible.
Additional:
Due to differences in monitors, colors of products may also appear different to those shown on the site. These Spray Bottles are available in various sizes and specifications, OEM and ODM are welcome.

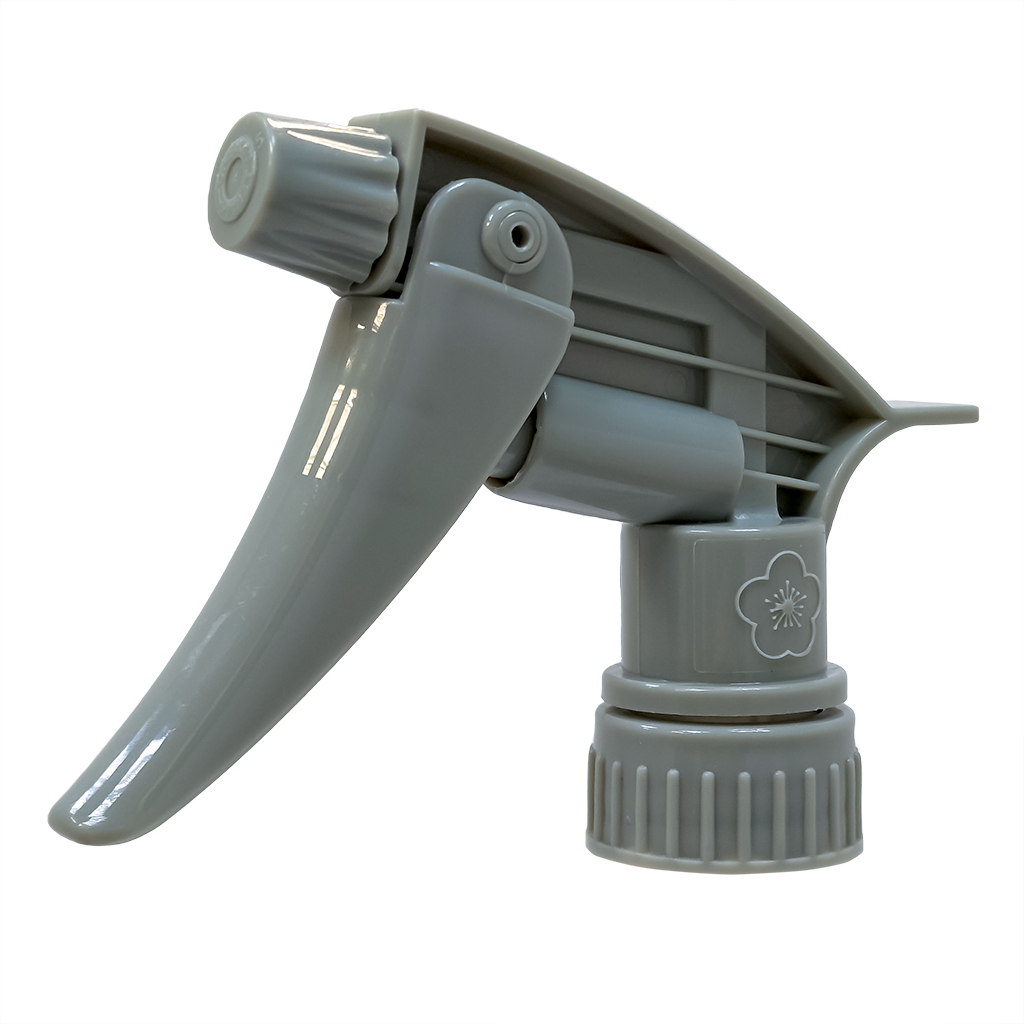

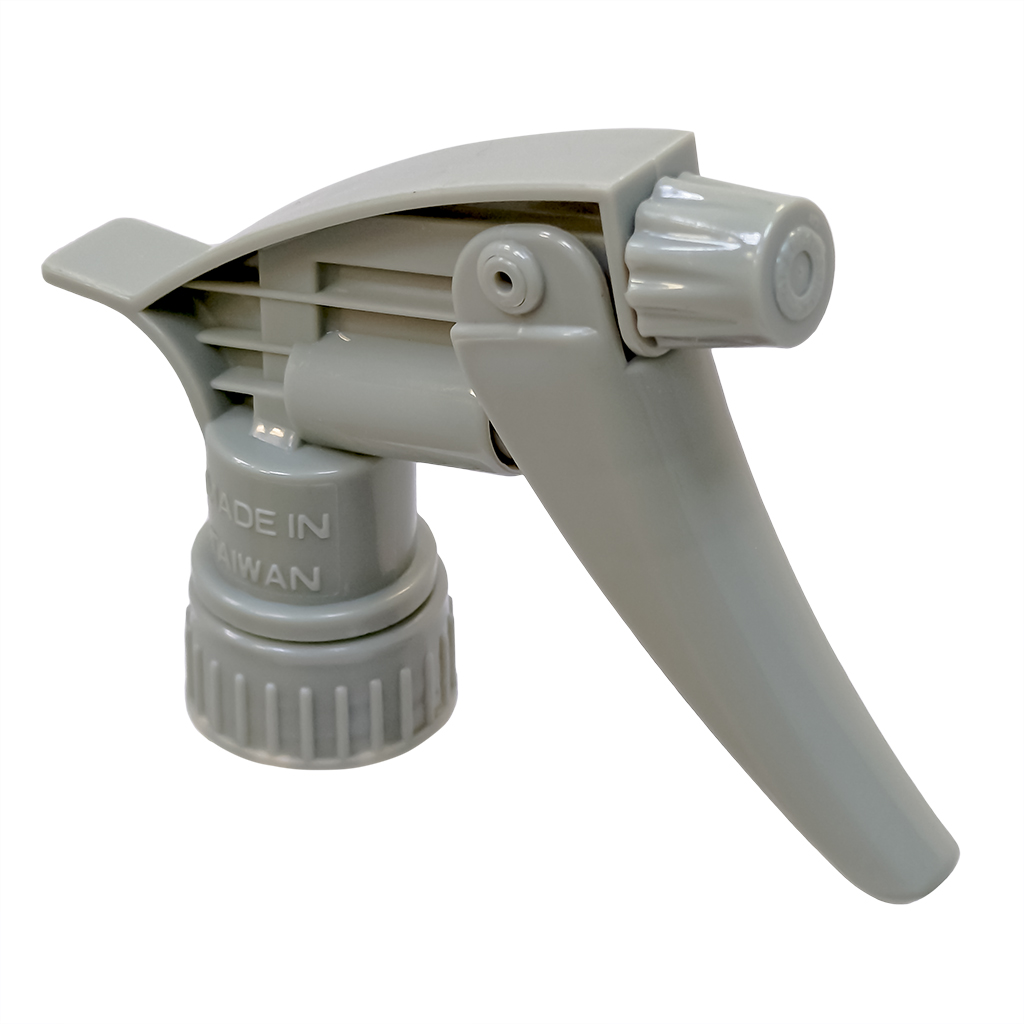

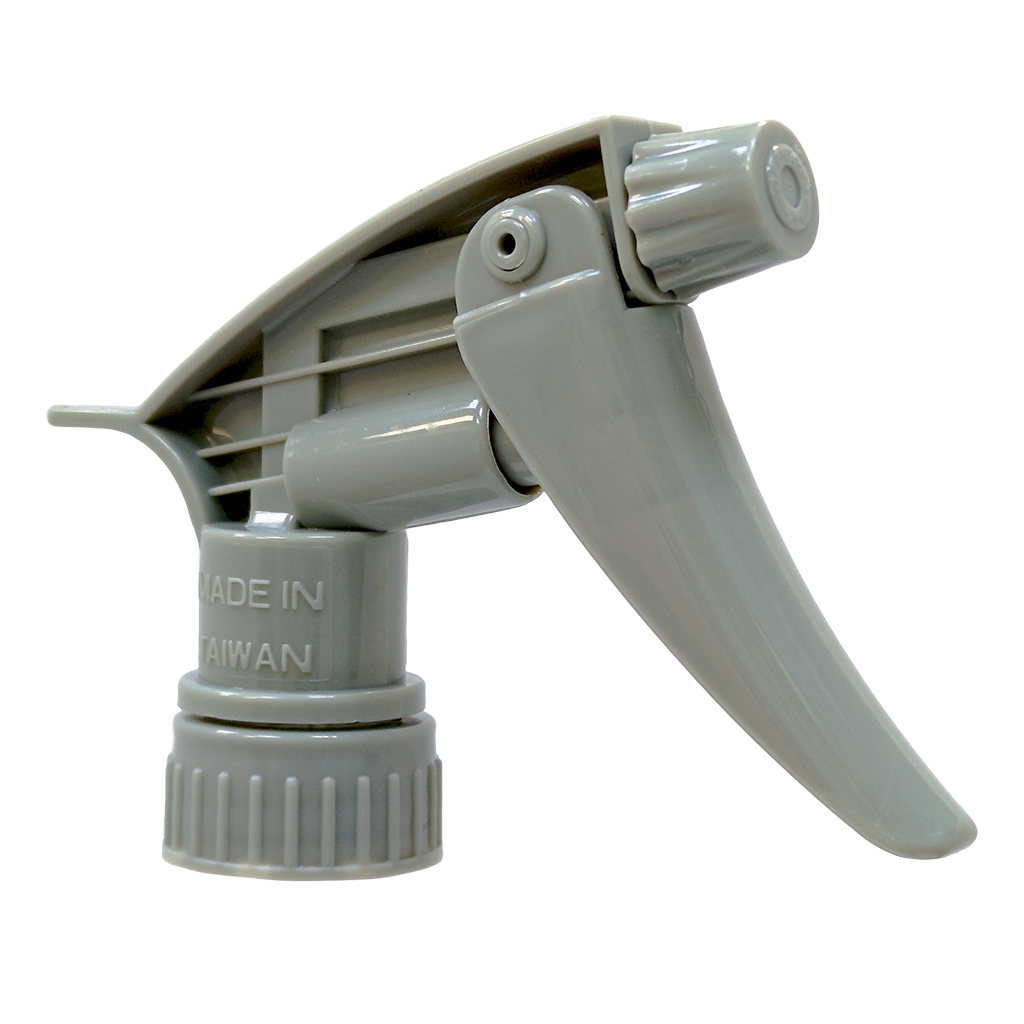

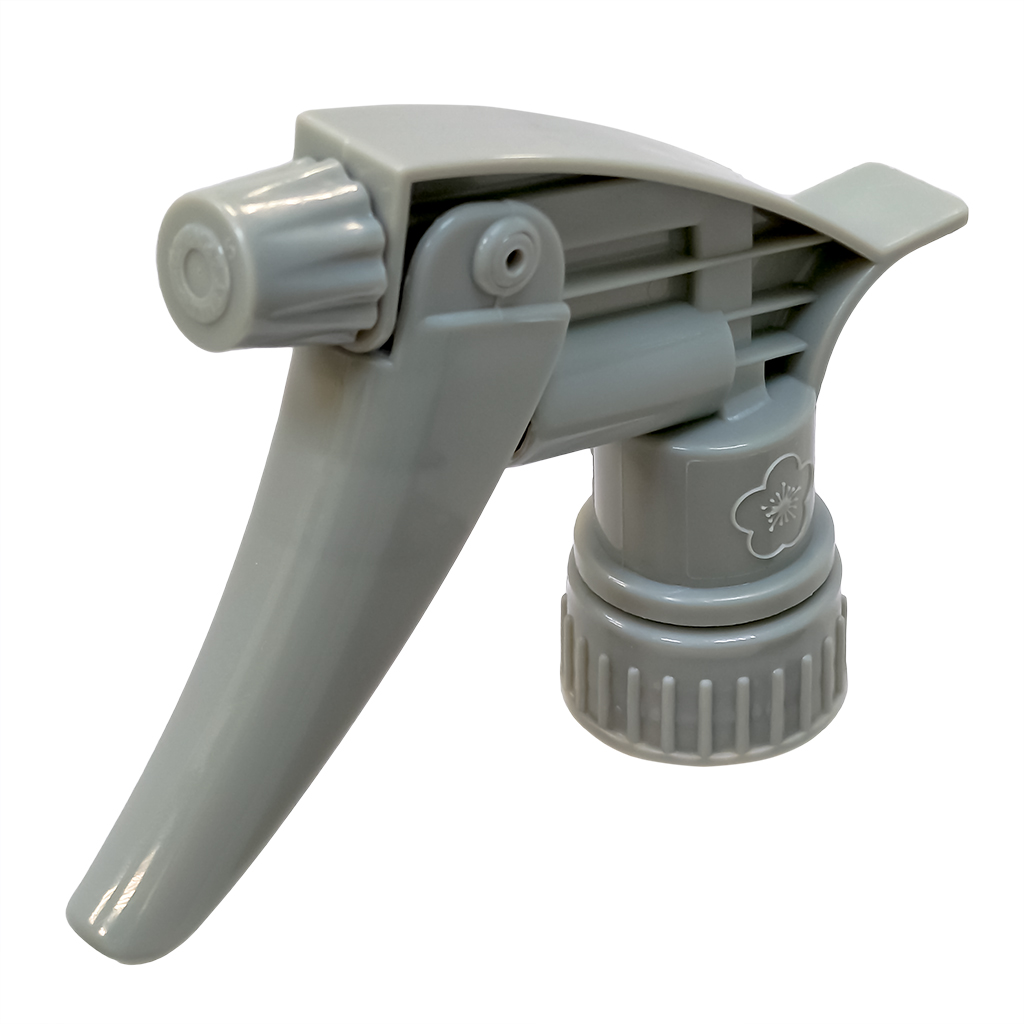

Gray Chemical Resistant Trigger Sprayer
Item No.: SBS858501
Material: PP (Plastic)
Colors: Gray Nozzle Cap, Gray Body
Output per Stroke: 1.1 cc ± 0.1 cc
Function: Adjustable Nozzle
Locking: Nozzle right twist to the end
Closure Size: 28/400 mm
Weight: 26.8 g
Dip Tube Max Length: 290mm
– Piston Washer: NBR Rubber (optional)
– Spring: 316 Stainless Steel
– Steel Ball: 316 Stainless Steel
◉ M.O.Q: 3,000 Pieces.
Description
This chemically resistant trigger sprayer works well for most tough chemicals that would typically harm a standard trigger sprayer. The nozzle is adjustable to create a fine spray or jet stream for dispensing liquids. In addition to harsh chemicals, this trigger sprayer is good for general use, household cleaners, auto detail, carpet spot cleaning and more.
Material: Polypropylene
Plastic Polypropylene (PP) is a tough plastic that has a good chemical resistant. PP is translucent in its natural state but can have a glossy finish when produced with color. It is not recommended for cold or sub-freezing temperatures.
316 stainless steel
This product offers high tensile strength and has a corrosion resistance that can withstand harsh environments. It is also non-magnetic and must be hardened through cold working. The difference between type 304 and 316 stainless steel is the incorporation of molybdenum of up to 3%. This grade of stainless steel is commonly used in the surgical industry, paper pulp industry and in the production of dyes and chemicals.
NBR (Nitrile Rubber) Property Comparison
Oil and Fuel Resistance: A
Animal and Vegetable Oil Resistance: A+
Alcohol Resistance: A
Alkaline Resistance: A
Acid Resistance: A
Aliphatic-solvent Resistance : Aliphatic: A+
Aliphatic-solvent Resistance : Aromatic: B
Oxygen Ated-solvent Resistance: D
Water Resistance: A
Disadvantages:
Not suitable for use in polar solvents such as ketones, ozone, nitro hydrocarbons, MEK and chloroform.
Optional:
Regarding the issue for the acetone and aggressive chemicals. We suggest may use the EPDM rubber will be good resistance for those chemicals. But kindly note this kind of rubber cannot suitable for the Mineral oil resistance and Gasoline resistance.
At present, our sprayers are available in three piston rubber parts for different chemical products. The three rubbers are NBR, EPDM, and Viton that for customers reference. NBR is the most popular rubber material in our triggers, and the price is acceptable but some the solvent will be damage the NBR. Next, the EPDM has expensive than NBR a little but can be resistance for the ketone. The Viton will be very expensive than others rubber, especially strong resistance for Acid, Alkali, oil, and Gasoline chemicals.
If you need to purchase EPDM or Viton’s trigger sprayer, please write to us and we will serve you as soon as possible.
Additional:
Due to differences in monitors, colors of products may also appear different to those shown on the site. These Spray Bottles are available in various sizes and specifications, OEM and ODM are welcome.
Data Sheet
Here is a trigger sprayer technical data sheet.
This is a service that we provide to visitors for easy downloading.
Download link as follows:
SBS858501 Technical Data Sheet Y19W08
SBS858501 Technical Data Sheet (Grayscale)
Please don’t hesitate to let us know if there is any mistake.
